CRS112-8P-4S-IN
Product Details
Brand: mikrotik
Architecture: MIPSBE
CPU: QCA8511
CPU core count: 1
CPU nominal frequency: 400 MHz
Dimensions: 2 x 142 x 44 mm
License level: 5
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
PoE in: No
PoE out: 802.3af/at
PoE-out ports: Ether1-Ether8
Number of DC inputs: 2
DC jack input Voltage: 18-28 V / 48-57 V
Max power consumption: 10 W/160 W
10/100 Ethernet ports: None
10/100/1000 Ethernet ports: 8
Number of 2.5G Ethernet ports: None
SFP ports: 4
SFP+ ports: None
Number of 1G/2.5G/5G/10G Ethernet ports: None

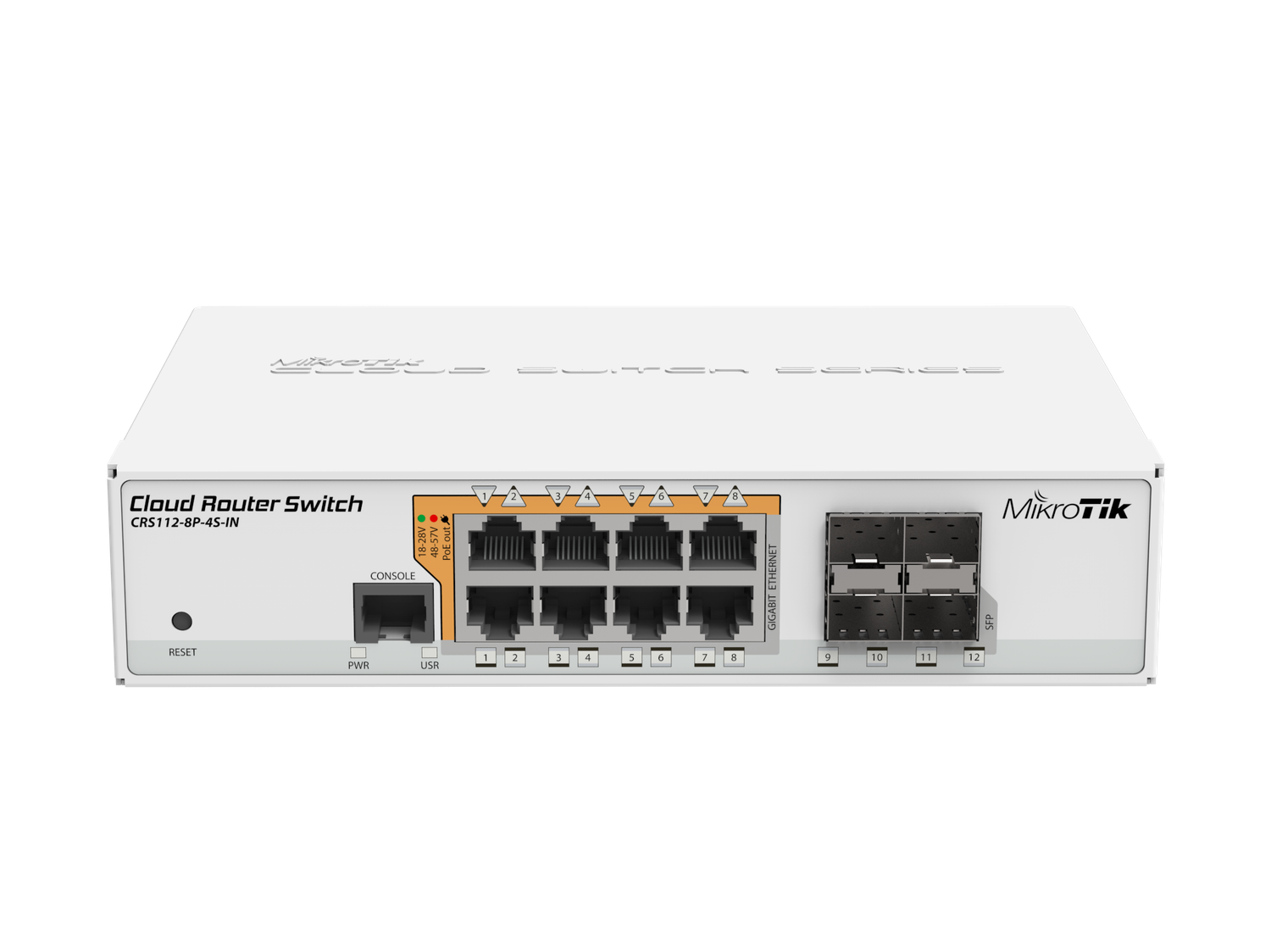

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps. CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
