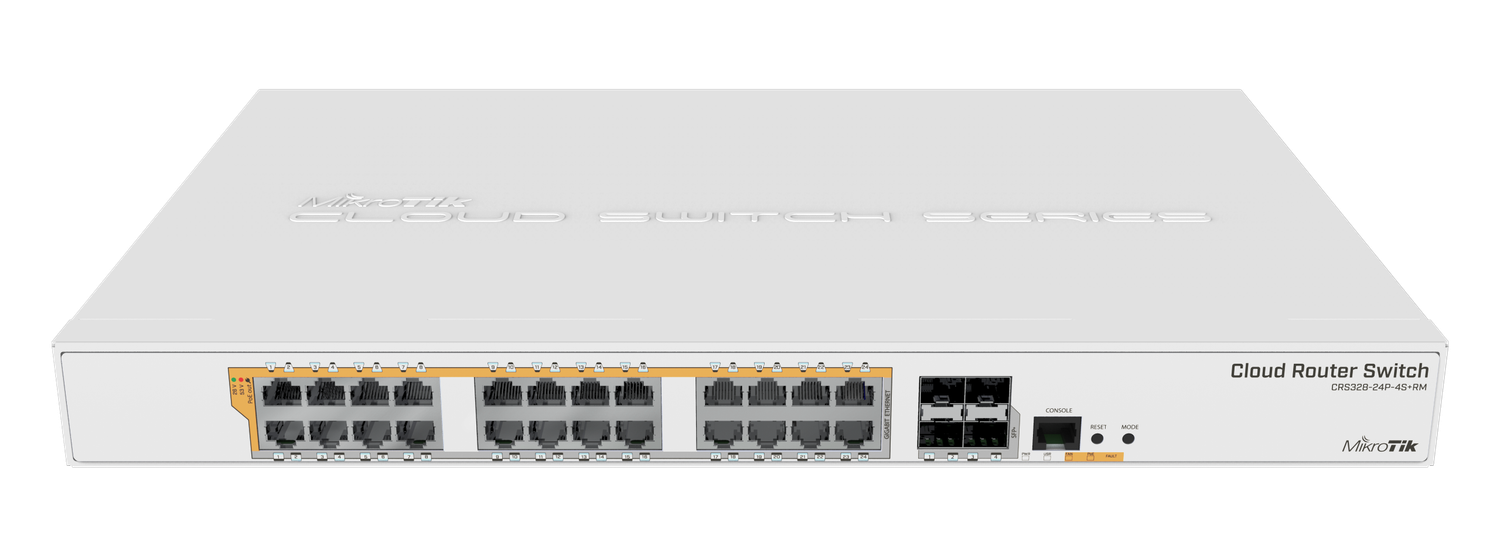

CRS328-24P-4S+RM: power-packed PoE switching with flexible OS

Need dense PoE and easy 10G uplinks in a single rack unit? CRS328-24P-4S+RM delivers 28 independent ports in a compact, efficient package.

Ports & PoE that fit any plan

• 24× Gigabit Ethernet with auto-sensing PoE-Out options:
  • Passive PoE
  • Low-voltage PoE
  • 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”)
• PoE-Out is provided over Mode B pins: (4,5 +) and (7,8 −)
• 4× SFP+ uplinks for up to 10 Gbps via fiber or copper modules (modules not included)

Built to power your edge

Housed in a 1U rackmount chassis with a 100–240 V AC, 500 W built-in PSU.

• Switch draws up to 44 W, leaving a guaranteed 450 W PoE budget
  • Distributed as 3 × 150 W per each block of 8 Ethernet ports
• Up to 30 W per port across any selected PoE mode

Dual boot: pick your OS

Choose the workflow that suits you:

• SwOS for a streamlined, switch-only experience
• RouterOS for routing and other Layer-3 features

Select the operating system from RouterOS, SwOS, or the RouterBOOT loader.

Best-in-class value

All this capability arrives at a disruptive price point—delivering exceptional price/performance for PoE-heavy networks.
